Review Of The NorthStar DX880HL
The new NorthStar line of radios are copies of the Galaxy line. These radios are said to perform as well or
better than the Galaxy units. The one reviewed was made in China. In the past I've seen good and bad
quality from China. Uniden has a factory in China and their products are well made. Some other
manufacturers have plants in China and the quality leaves a lot to be desired. We'll just have to put it
through its paces and lift the covers for a peek inside.
Thumbing through the Users Manual I noticed that the frequency stability is claimed to be .001%. If this is
true this radio is far better than the Galaxy counterpart. The Galaxy SSB chassis drift more than any other
that I'm aware of. A claim of 361 channels also surprised me, the radio only covers 28.315 MHz to 28.755
MHz out of the box and this is only 45 channels with 1OKhz spacing, a bold claim under the
circumstances. 'Me manual does have information covering all the features of the unit. It also has sections
on mounting, antenna & tuning, tips for antenna adjustment, receiving SSB signals, microphone schematic
& wiring, one year warranty information and an 800 number for help & service.
The manual is better than most. The tips for antenna adjustment had useful information that could be used
as a check list for debugging a problem installation. The section on receiving SSB signals is quite good
and would be useful for first time sidebanders or operators that have had problems tuning in on sideband.
Me microphone instructions are filled- with complete details geared for someone who has never wired a
Removing the radio from the bag I was impressed with the deep black finish on the face. It was
reminiscent of the AR-3500 by Clear Channel Corp. The six little push button switches have a more solid
feet to them than the Galaxy. Also the switches and controls have a quality feel to them.
I decide to apply power to the unit before I opened it because the specification on frequency stability was
intriguing me. Could they make this radio that stable. This would mean that the radio would only drift +/-
288 Hz in the worst case. Well, I turned it on and immediately checked the frequency. A half hour later I
rechecked the frequency and found that the radio drifted approximately - 870 Hz. This is about .003% or
three times the specification. I believe this is a little less than the Galaxy. They seem to drift I KHz to 1.3
KHz cold to warm. Keep in mind the winter mobile operation will be worse. The tests were done at room
temperature. It would be desirable to see the radio improved in this area to match the specification claim.

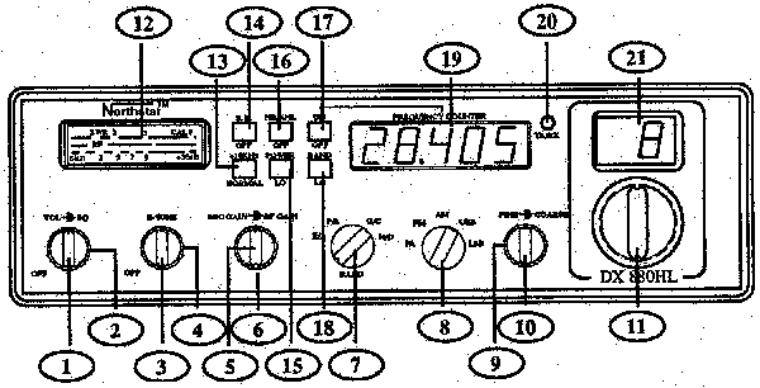

Below is a diagram indicating the location of the controls.
Power On/Off Volume
If you're familiar with the Galaxy DX88 you can see that the control function and placement are identical
between the two units. Before removing the screws I notice there were no Warranty Void labels! On the
inside the story is the same, component and board placement are the same in both radios. The conversion
is the same for the two. Quality of workmanship is better in the NorthStar. They even replaced the nylon
screw holding the frequency counter module. These screws are usually stripped from the factory and
eventually snap off within a year of operation leaving the frequency counter floating around in the chassis.
Tune-up is the same a the Galaxy with the same results. Sideband output was 35 watts PEP while AM was
10 watt dead key swinging to 30 watts fully modulated and I watt dead key swinging up to 15 watts with
the power in the low position. Low power is great for driving and amplifier, but the sideband power would
have to be reduced internally as the low power switch doesn't effect sideband in these units. The audio
was clear in all modes and the receive is as sensitive as the other unit. 'Me receive audio was crisp, clear
and without that annoying high pitch static found in the newer DX radios.
On the air tests went well, the adjacent channel rejection is comparable to the DX88. The echo is also
unchanged with the same amount of control and clarity.
My wish list for this radio is as follows:
Better frequency stability.
A 6 digit frequency counter.
A 5 KHz switch.
Power switch controlling AM & SSB.
A 2.8 KHz sideband IF Filter.
I f this radio had these additional features I think it would be the perfect all mode mobile radio.
What I like about the NorthStar DX88OHL:
A 1 year limited warranty.
Better quality workmanship.
Better switches & controls.
An 800 number to call for help.
NO WARRANTY VOID TAMPER PROOF LABELS.
If this is the type radio you're looking for I would recommend this version over the Galaxy. The warranty is
worth the difference in price and it's a good feeling to be able to contact someone if you have a problem.
With other radios you may go through an owners' manual from cover to cover and not find so much as an
address for the company that supplied the product. This doesn't exactly give you a warm comfortable
feeling. This to me is the best reason to consider NorthStar. NorthStar is a product of Wireless Marketing
Corporation, 3701 N. Algonquin Rd. #750, Rolling Meadows, IL 60008. If wireless marketing sounds
familiar, that's because they're the people that bring us the Cherokee radio line.
+10KHz Shift Switch
Roger Beep Switch
Hi/Lo Power Switch
NB/ANL Off Switch
Counter Display Switch
